Dichroic Glass (ridged)
Material ID: 1576
Description

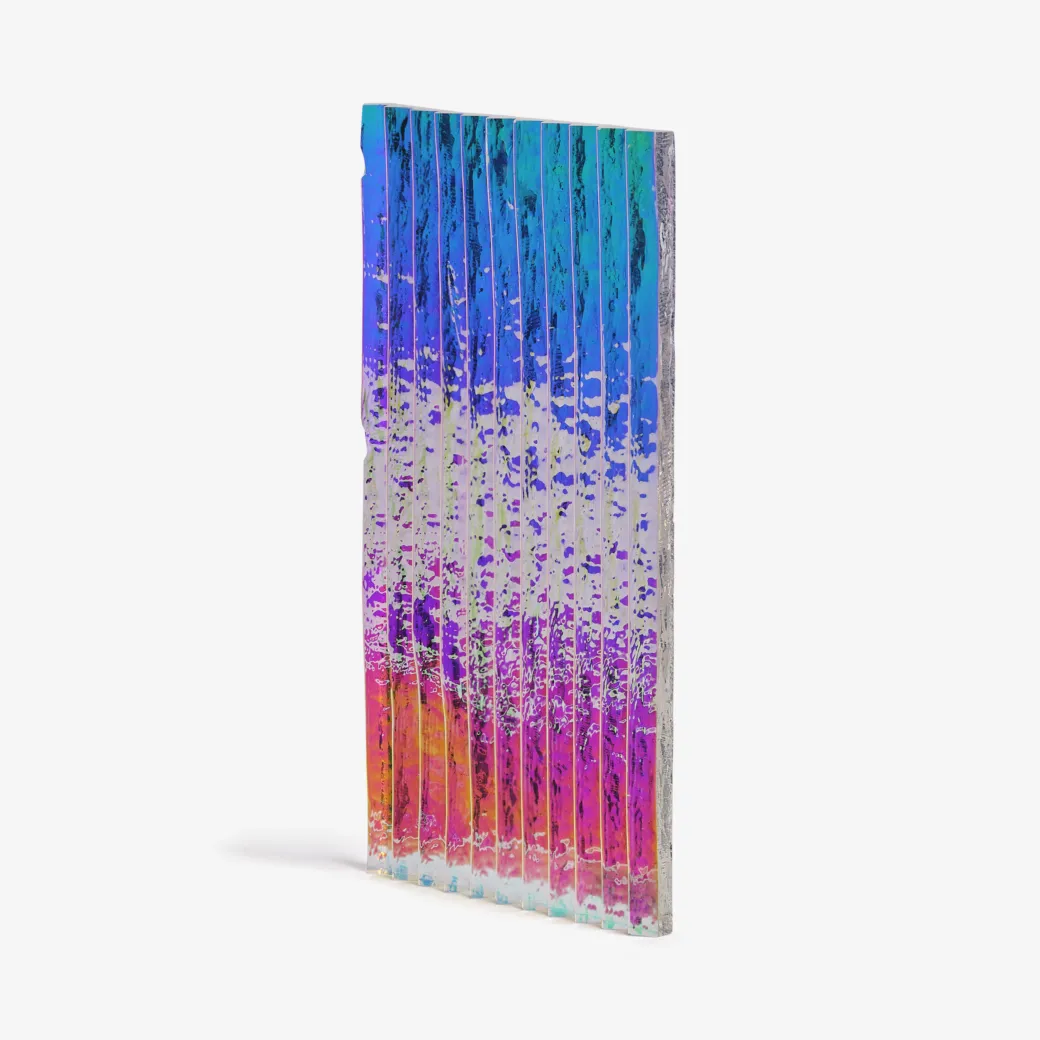

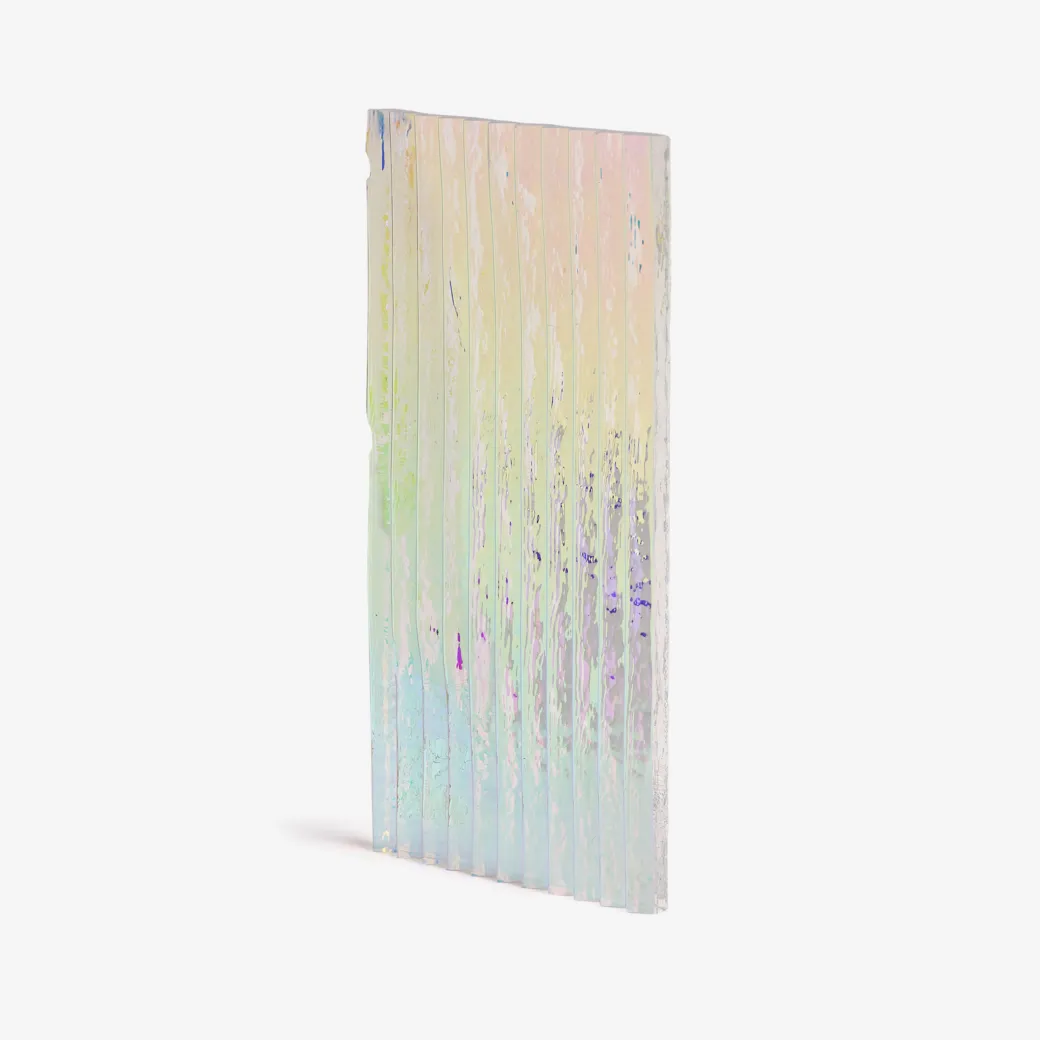

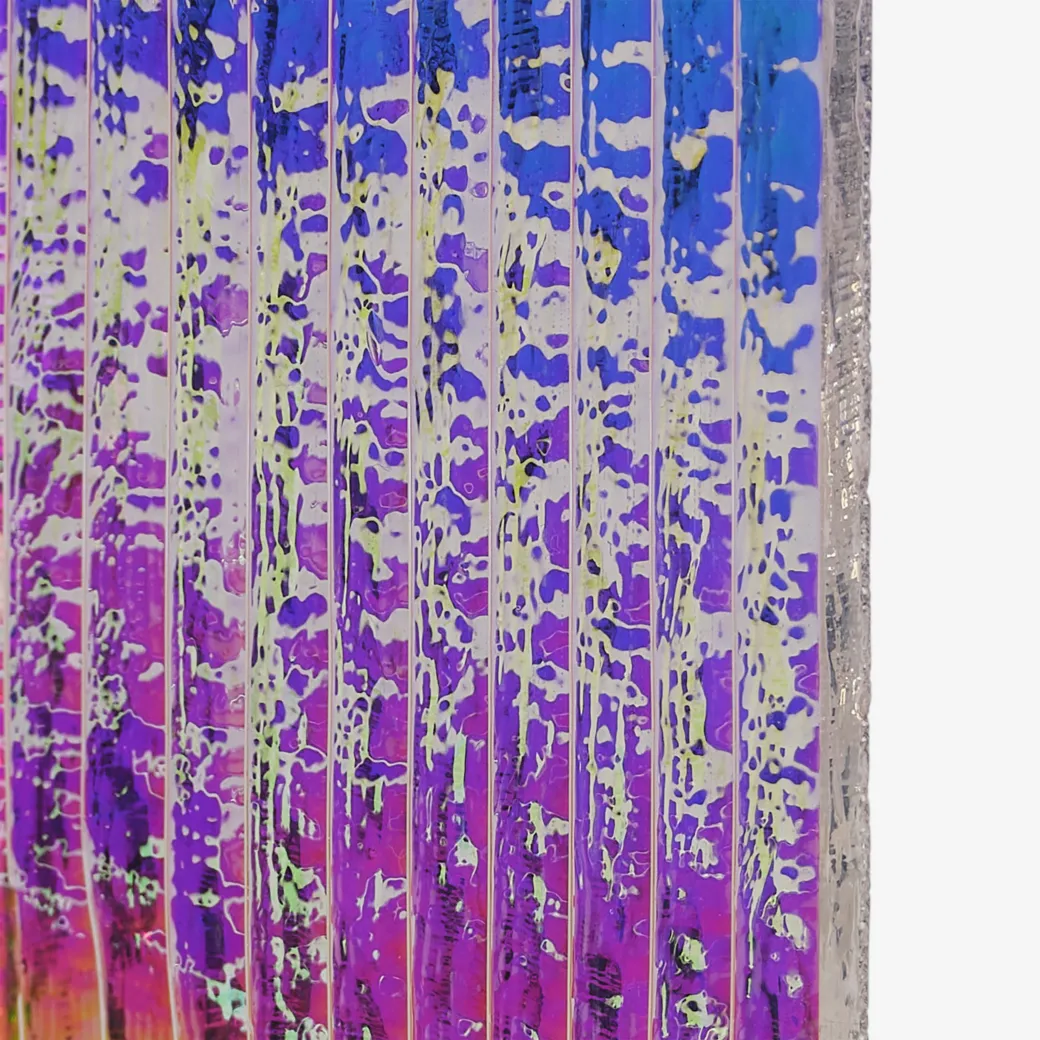

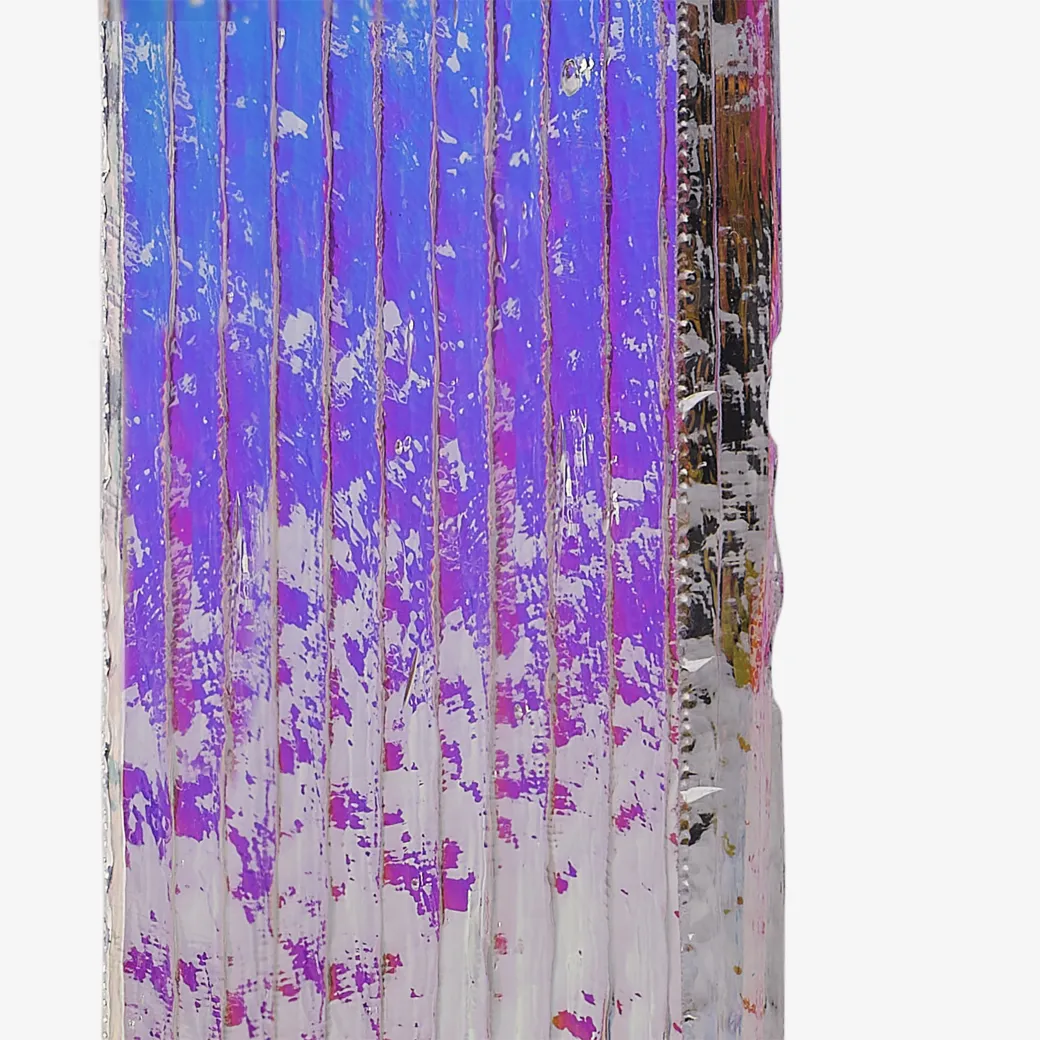

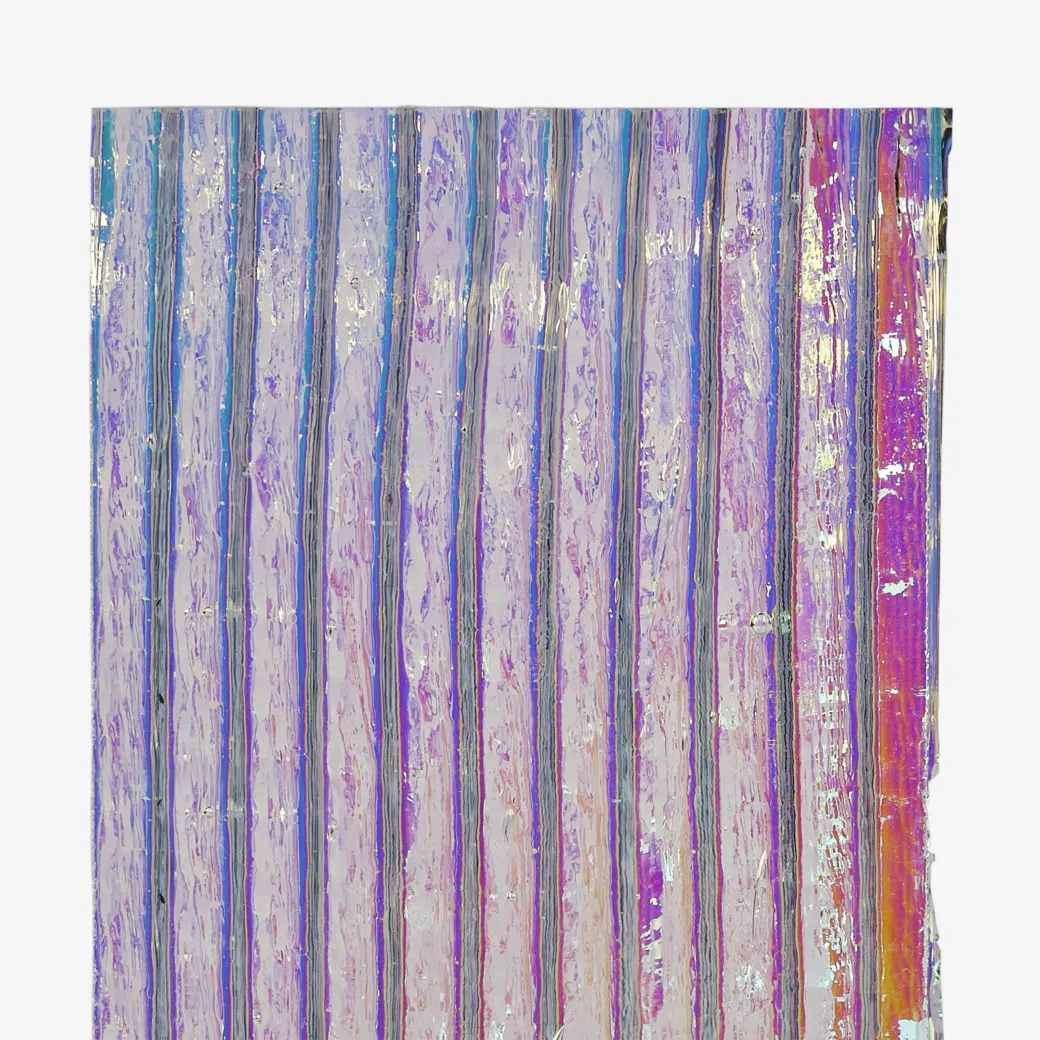

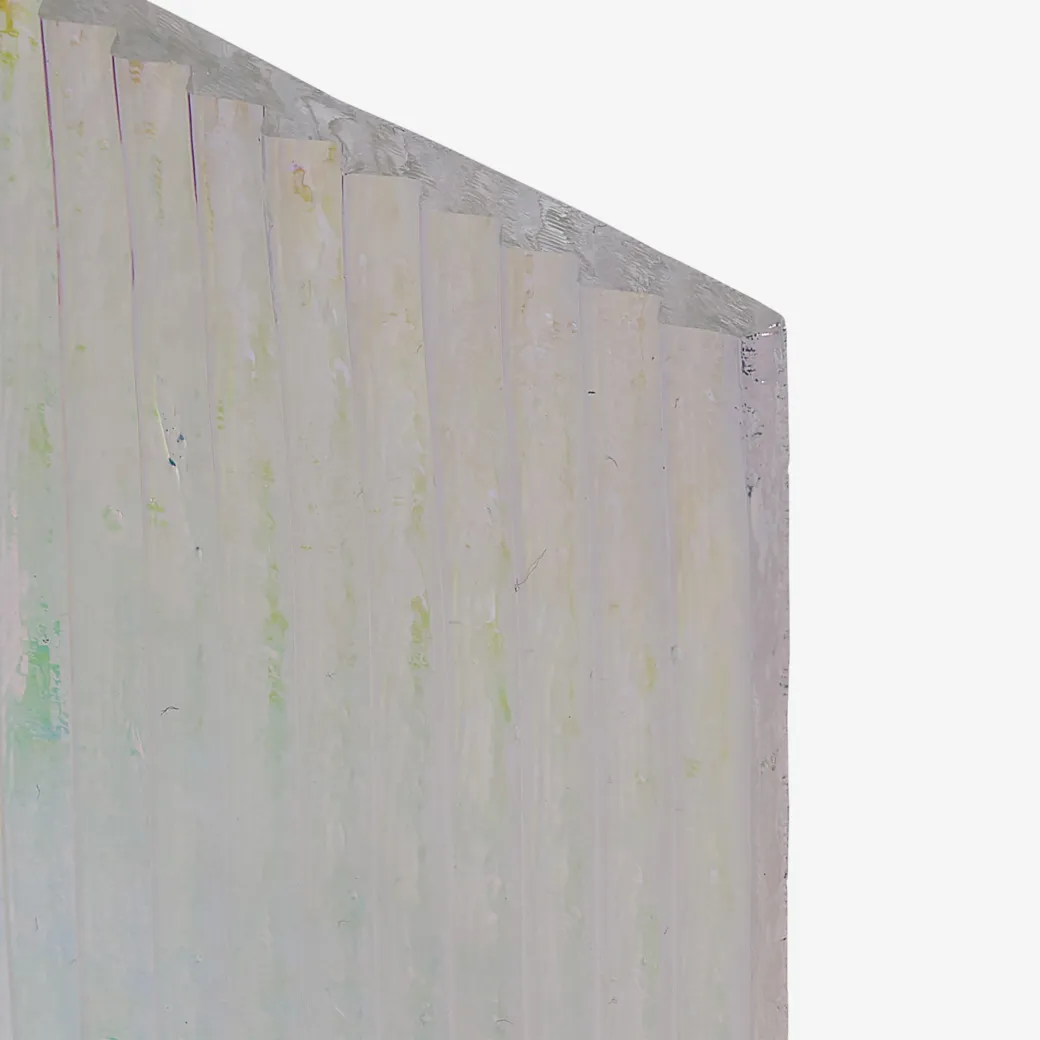

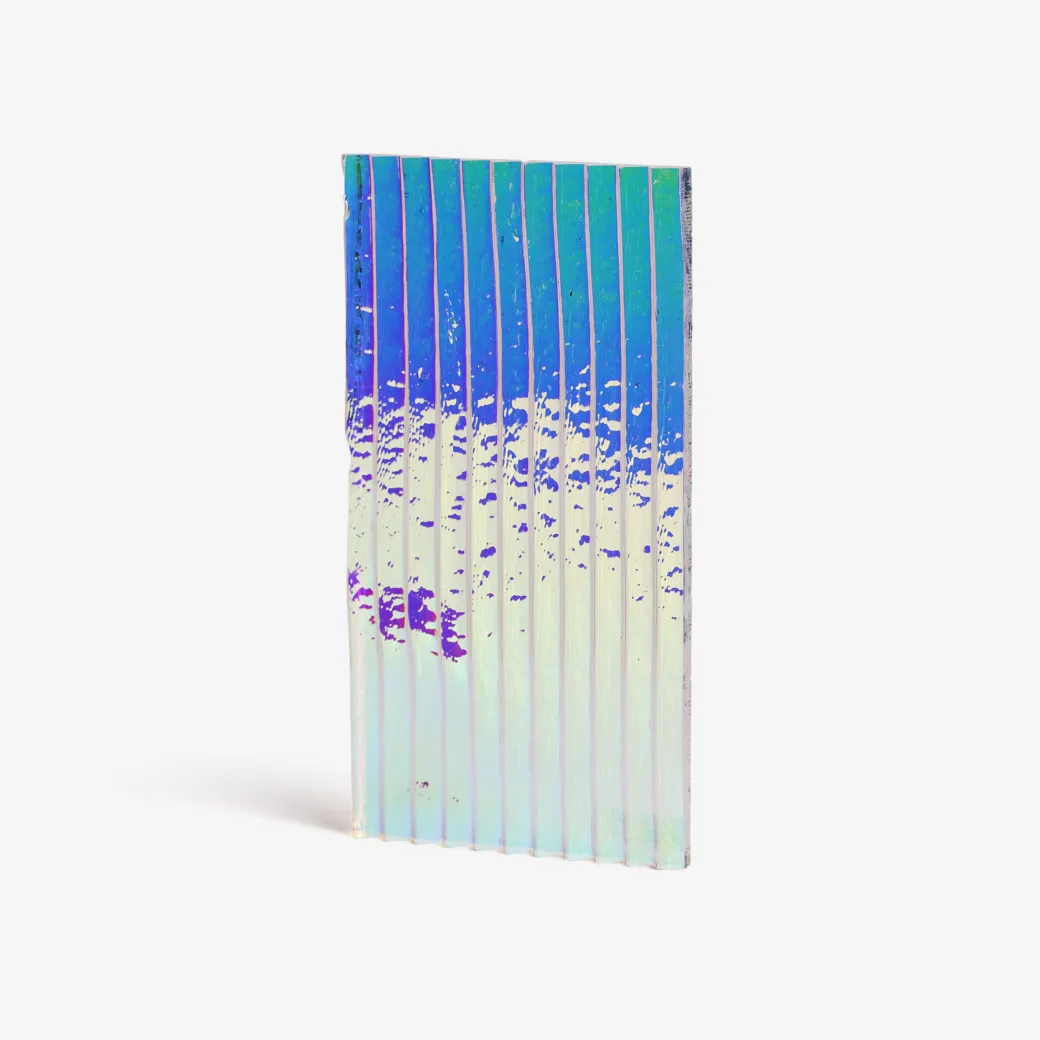

This undulating, gleaming rectangle is part of our collection of dichroic glass sheet samples, used in kiln-formed glass art, jewellery making, and decorative crafts. These vibrant swatches have quite a split personality. Are they colourful or colourless? Are they one hue or another? Are they clear like glass, or reflective like a mirror? The answer is a bit of both, and hinges on your viewing angle.
‘Dichroic’ means ‘two-coloured’: look at a light through this material, and it takes on one colour; reflect a light off it, and it shifts to another colour. This dichroic effect is a close cousin of the anti-reflective property of museum glass, of the blue light filtering quality of screen reading glasses, or of the solar heat shielding ability of astronaut helmets. It is also related to the shimmering colours of soap bubbles and oil slicks. Quite surprisingly, these iridescent colours arise from clear glass being coated with a number of clear layers. Imagine a lasagna-type coating – where the pasta layers are made of metal oxides, and the layers of sauce are made of silica or magnesium fluoride – with a twist: each layer is thinner than the wavelength of visible light. This is produced through nanofabrication, using physical vapour deposition techniques like the one linked to our aluminium sputter target. Since the layers are clear, they allow light through. But since the ‘pasta’ layers have been designed to slow down the light more than the ‘sauce’ layers, light undergoes a phenomenon known as interference as it travels through the stack. This has the result of reinforcing or weakening some colours in the light either goes through or bounces off the stack. By finely tuning the composition and spacing of the layers, optical engineers can cancel out all reflected light (for antireflection coatings), cancel out just the transmitted blue light or infrared light (for screen reading glasses or astronaut helmets), or carefully select which colours are transmitted and which colours are reflected (for our dichroic glass samples). If light enters the coating at an angle, its path through the stack gets longer, and the transmitted and reflected colours shift to a different combination.
‘Dichroism’ is a bit of an umbrella term which encompasses a range of colour-shifting effects that don’t share the same physical origin. These glass samples are better described as displaying iridescence (angle-dependent colour stemming from the interference of light in nanoscopic films). Other families of dichroism are represented in our collection by rare-earth glazed ceramic cubes (whose colour varies under different types of white light), and by aerogel fragments and colloidal gold dispersions (whose different transmission and reflection colours stem from their three-dimensional nanostructure).
Library Details
Site
Bloomsbury
Status
In Library
Location
Wooden Shelves
Form
Sheet
Handling guidance
Wash hands after handling.
Date entered collection
Saturday 1st August, 2020
